Name: Electronic Fingerprint/Keypad/Card/APP Lock, Silver
Brand: Liliwise
SKU: TW-A210
Price: 500.00 EUR
Availability: InStock

A210 TTlock User Manual.pdf

CE Certificate.pdf

Triple W accessories are painted by GLOMA®, Lda. according to the following procedure:

- The parts are degreased and polished to improve paint adhesion;

- A special two-component primer is applied, which then hardens in an oven at approximately 100 degrees Celsius for 60 minutes;

- Finally, a two-component polyurethane paint is applied, which is cured in an oven at approximately 100 degrees Celsius for approximately 60 minutes.

The paint finish complies with the Catim certificate, which can be found at https://gloma.pt/certificates/. Paint finishes always have a satin finish.

What is paint for?

Besides the aesthetic benefit of ensuring that the equipment matches the base color, or contrasts with the desired finish, paint also has the advantage of protecting the equipment from the corrosive and oxidative effects of seawater.

Many Triple W dates are made of stainless steel and are IP55 certified, providing high resistance to dust and water jets.

However, protection against salt spray can only be achieved with a protective lacquer coating, using a special paint layer.

An alternative to painting is to permanently coat the surfaces with petroleum jelly or another type of grease.

Triplo W does not install equipment.
We analyse the need through photos, drawings and written description, we design the most appropriate solution for each case and we quote the supply.

The installer technician is hired by our client and we give the necessary instructions for a good installation.
The equipment is supplied with detailed installation plans, videos, animations and wiring diagrams.

The installation of this lock must be carried out by the manufacturer carpenter or locksmith, depending on the construction material of the door.

Installation precautions

1. Be especially careful not to cut wires during the connection between the two parts of the lock

2. Ensure that the rubber seals are properly fitted and snug against the door. If necessary , glue the sealant with soft glue.

3. Insulate the key entry cover to prevent saltpetre from entering with a grease.

4. After assembly, clean the whole lock with a cloth wet with liquid soap, to avoid oxidation

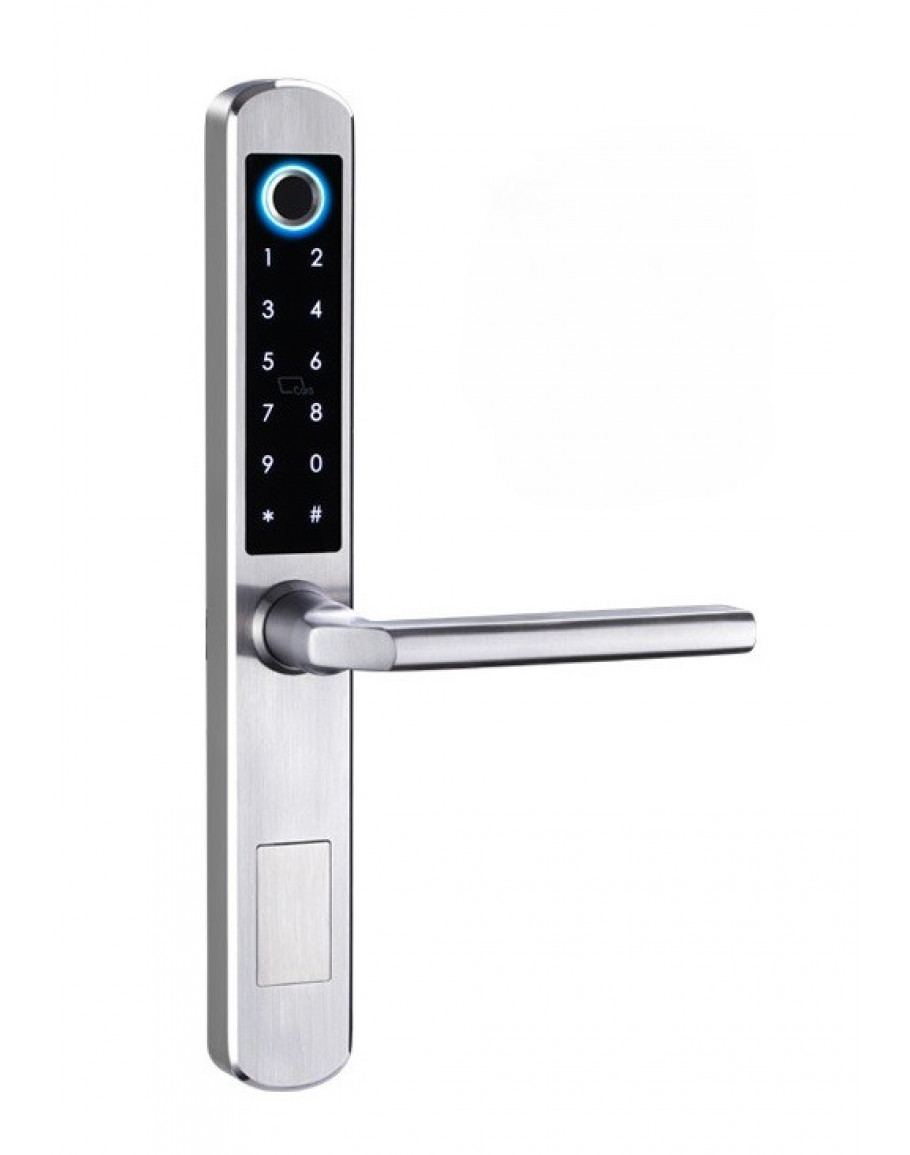

TW-A210

Electronic Fingerprint/Keypad/Card/App Lock, Stainless Steel

Remote Management - TTLock APP - Learn More

Suitable for aluminium and PVC profile doors

BATTERIES NOT INCLUDED

Electronic Lock with remote management by TTLock APP (iOS and Android)
Remote control via smartphone (No internet connection required) of permanent and temporary access codes;
High-quality workmanship
Available colours:

Stainless steel;

Various types of opening:

Mobile phone opening via TTLock Bluetooth/Wifi APP ( Android and IOS);
Fingerprint
Code: 4 to 8 digits
Mechanical Wrench
Mifare proximity card
Double authentication: For added security it can be programmed to be opened only when two authorised opening methods are entered

Power: 4 x AAA batteries (not included)
Simple installation;
Backlit touch keyboard;
Reversible - for right or left doors
Total management through the application;
Door thickness: 35mm to 65mm;
Low battery indicator;
App features:

Battery level indicator;
Registration of openings;
Creation and management of codes, cards and eKeys;
Management of administrator accounts;
Lock firmware updates;

Bluetooth

User can generate codes without being on site but they are generated automatically, the user can only control the validity of the code;
You cannot erase codes;
You do not have access to the entry log.

Wi-Fi

User can create their own code from 4 to 8 digits and its validity;
You can delete created codes ;
Access to the register of openings;
Access to battery status.

This lock is not waterproof.

It requires special cleaning care and maintenance when installed in marine environments subject to salt fog.

It is advisable to protect all metal elements installed near the sea or chemical environments, with sewing machine oil or liquid petroleum jelly.

CLEANING RECOMMENDATIONS:

It is essential to follow these guidelines to ensure the durability, proper functioning and longevity of the equipment.

· Initial Cleaning: Always with a cloth Smooth and dry before installation.

· Touchscreen Protective Films: A Protective film of the display may display
Risks due to handling during transport, in this case you must remove the
film after installation;

· Periodic Cleaning: Minimum every 3 months, adapting the frequency to the environment (outdoor, dust, sands, saltpetre, etc.).

· Built-in Mechanical Locks on the doors: Periodic lubrication with liquid fat.

· Electronic Locks: Cleaning and Periodic external lubrication with liquid fat (e.g. oil sewing machine).

· WARNING: Avoid products of cleaning corrosives such as WD40 as they can damage electrical circuits and painting.
