We don't do installations


Kit011

View Bundle

Touch keyboard with management by TTLock APP application


  • Remote control via smartphone (No Internet connection required)  of permanent and temporary access codes;
  • Requires external power supply
  • Voltage: 12V DC
  • Simple installation;
  • Backlit touch keyboard;
  • Total management through the bluetooth application  ;
  • Various types of opening:
    • Opening by mobile phone through TTLock Bluetooth/Wifi APP application (Android and IOS);
    • Code: 6 to 8 digits in Bluetooth Remote Management and 4 to 8 digits in Wi-Fi Remote Management;
    • Mifare Card 13.56MHz; - up to 20000 users
    • Remote Opening (Wi-Fi mode only);
    • Log openings (Wi-Fi mode only)

Remote Management - APP TTLock

  • Bluetooth
    • User can generate codes without being on site but these are generated automatically, the user can only control the validity of the code;
    • You can't delete codes;
    • You do not have access to the entry log.


  • Wi-Fi
    • User can create their own code from 4 to 8 digits and its validity;
    • You can delete created codes ;
    • Remote opening ;
    • Access to the register of openings;
    • Remote Opening.




Rain protection for access control, black.


  • Outdoor protection accessory for TW300K
  • Protects from rain
  • Anti vandalism
  • Material: ABS

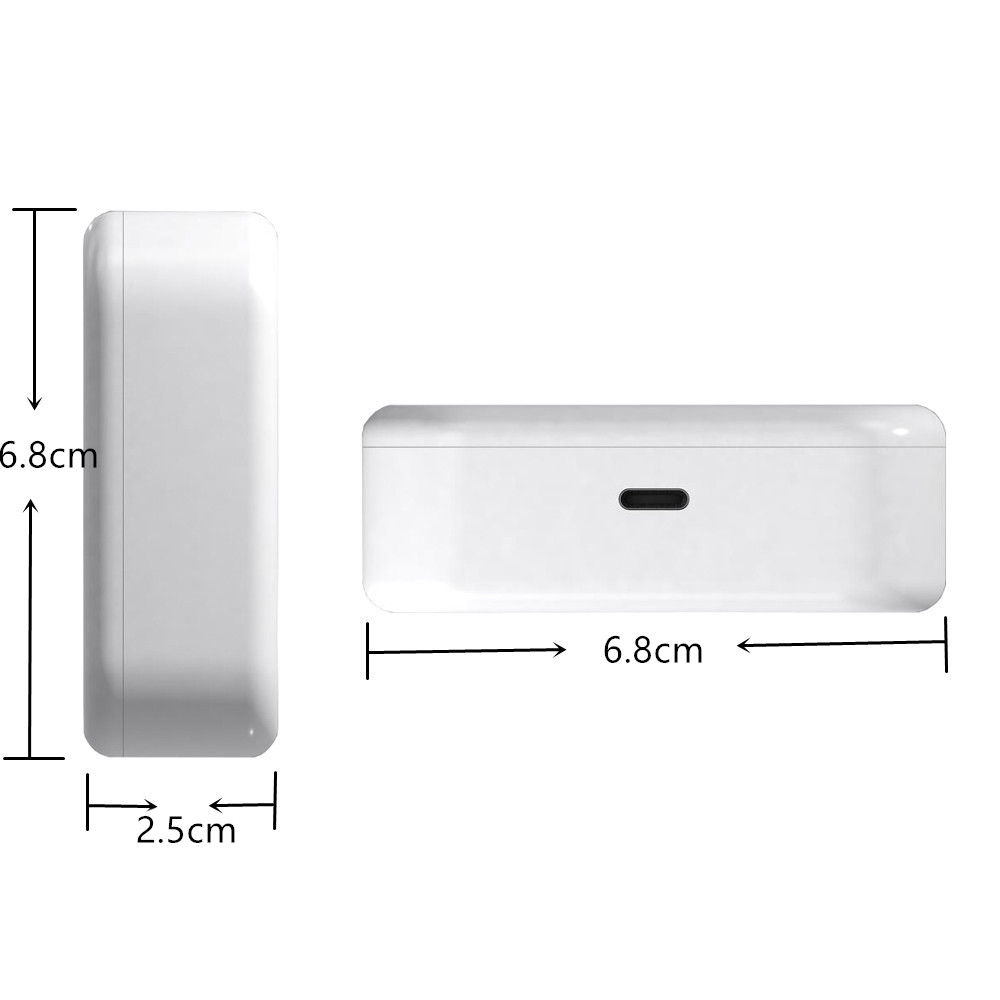

Gateway for remote connection with USB power


Device to assist for Remote WIFI management of TW31A / TW11A / TW200K locks.

  • 20-meter range between lock and TW-Gate in open field
  • A TW-Gate can manage multiple locks(no one per lock) is required, as long as it is within your reach
  • Status and sync LEDs
  • Easy pairing with your account in the smartphone app
  • USB power



By adding the TW-GATE it is possible to manage more advanced and customized:

  • Create codes from 4 to 8 digits and their temporal validity (date/time);
  • Delete created codes;
  • Access the opening log;
  • Check the status of the lock batteries;
  • Assign new administrators;
  • Provide app access to new users;
  • Create various types of codes:
    • permanent
    • temporary
    • single opening
    • cyclic




12VDC power supply

  • Input voltage: 110-240V AC
  • Output voltage: 12VDC - Max. 1.5 A
  • Power: 18W
  • Weight: 0.12Kg
  • Dimensions: 48 x 49.50 x 26 mm
  • Short-circuit protection
  • IP67 protection
  • Operating Temperature: 0ºC to +45ºC
  • Compact, can be mounted directly on the surface or in a inlay/junction box

NR

Electric latch ARMORED DOOR, 12V DC, for right-hand doors

This latch only works with 3 or 4 hole mirror

  • Latch specially created for DOOR BLINDADA with multilocks.
  • Fail-Secure (No power, closed port)
  • Adjustable from 3mm to 6mm
  • Resistance force up to 7000 N
  • Measures (latch without mirror):  88.8 (L) x 23 (W) x 32 (H) mm
  • Voltage: 12 VDC
  • Current: 230 mA
  • According to standard 2004/108/EC (EN55014)
  • Corrosion resistance UNI ISO 9227
  • Operating temperature: -15ºC to +40ºC
  • Installation: Wooden or metal doors
  • Available in 2 types of mirror
  • Price shown is NO MIRROR, just the latch
  • Door side - Option B and D (See image below)




Model ABK-805


  • To be mounted on the wall
  • Casted case with stainless steel button, to be connected to the access control to open the door from the inside
  • Nice appearance and easy to use
  • Dimensions: 83x32x25(mm)
  • Current: 3A@36VDC Max
  • Output contacts: NO\COM
  • Tested for: 500000 cycles
  • Working temperature: ~ (-10 to +55)°C or (14 to 131)ºF
  • Working humidity: 0-95%
  • Weight: 0.3kg

Nr

TW-RA3 - 3m cable

Cable for connection and power of elements of the Triple W Kit's

  • Cable for electrical connections.
  • Length: 3m.



TW-0180 - Wiring set for KIT's

Cables for connection and power of elements of the Triple W Kit's

  • Set composed of:
  • 3 X Cables for electrical connections with 3 meters in length each
  • 3 X electrical connections
  • 9 X smugglers



MIFARE tag in key chain format


  • Frequency: 13.56MHz, IC;
  • For exclusive use with our access controllers;
  • Operation by proximity (5 cm)
  • No battery required;
  • Size: 50x30x2 mm;
  • The same key can open different drivers;

Pre-wiring includes:

Connectors for easy installation;

Electrical cables connectors with 3m;

Electrical assembly of components.
