We don't do installations


View Bundle

Touch keyboard with management by TTLock APP application

  • Remote control via smartphone (No Internet connection required)  of permanent and temporary access codes;
  • Requires external power supply
  • Voltage: 12V DC
  • Simple installation;
  • Backlit touch keyboard;
  • Total management through the bluetooth application  ;
  • Various types of opening:
    • Opening by mobile phone through TTLock Bluetooth/Wifi APP application (Android and IOS);
    • Code: 6 to 8 digits in Bluetooth Remote Management and 4 to 8 digits in Wi-Fi Remote Management;
    • Mifare Card 13.56MHz; - up to 20000 users
    • Remote Opening (Wi-Fi mode only);
    • Log openings (Wi-Fi mode only)

Remote Management - APP TTLock

  • Bluetooth
    • User can generate codes without being on site but these are generated automatically, the user can only control the validity of the code;
    • You can't delete codes;
    • You do not have access to the entry log.

  • Wi-Fi
    • User can create their own code from 4 to 8 digits and its validity;
    • You can delete created codes ;
    • Remote opening ;
    • Access to the register of openings;
    • Remote Opening.

Rain protection for access control, black.

  • Outdoor protection accessory for TW300K
  • Protects from rain
  • Anti vandalism
  • Material: ABS

Gateway for remote connection with USB power

Device to assist for Remote WIFI management of TW31A / TW11A / TW200K locks.

  • 20-meter range between lock and TW-Gate in open field
  • A TW-Gate can manage multiple locks(no one per lock) is required, as long as it is within your reach
  • Status and sync LEDs
  • Easy pairing with your account in the smartphone app
  • USB power

By adding the TW-GATE it is possible to manage more advanced and customized:

  • Create codes from 4 to 8 digits and their temporal validity (date/time);
  • Delete created codes;
  • Access the opening log;
  • Check the status of the lock batteries;
  • Assign new administrators;
  • Provide app access to new users;
  • Create various types of codes:
    • permanent
    • temporary
    • single opening
    • cyclic

Power supply with UPS

  • When AC power is available, it is transformed to 12 VDC and supplied to the electric lock
  • When the AC power fails, it is replaced by the UPS battery
  • When the battery charge drops below 10 V, it stops supplying power supply and must be fed again by the AC source.
  • The battery is protected from electric shock in order to extend its durability
  • With battery compartment.
  • Led ON/OFF
  • Load voltage: 13V~13.5V
  • Input voltage: 220V
  • Output voltage: 12VDC
  • max. output current: 3 A
  • Dimensions: 210x163x50mm

Battery not included


12V 7Ah Battery

  • Voltage: 12V
  • Capacity: 7AH
  • Main applications: Alarms, fire systems, emergency lighting and UPS systems
  • Lifetime (average battery life): 5 years
  • Operating temperature: -20ºC ~ 55ºC
  • Dimensions (mm): 151 x 65 x 95

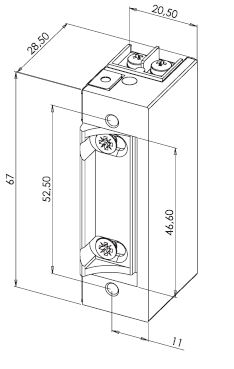

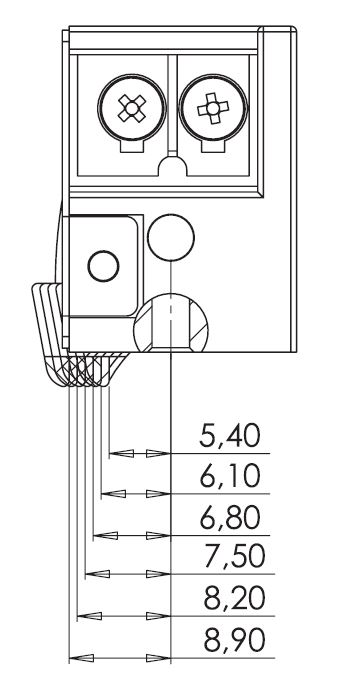

NO Fail-Safe electric latch (S/ power, open door)

  • Fail-Safe (No power, open door)
  • Latch with fit
  • Measurements (mirrorless latch): 67 (C) x 20.5 (L) x 28.5 (A) mm
  • Voltage: 12 VDC
  • Current: 220 mA
  • Installation: Wooden or metal doors
  • Available in 3 types of mirror
  • Price shown is MIRRORLESS, only latch

trinco_electrico trinco_electrico

Model ABK-805

  • To be mounted on the wall
  • Casted case with stainless steel button, to be connected to the access control to open the door from the inside
  • Nice appearance and easy to use
  • Dimensions: 83x32x25(mm)
  • Current: 3A@36VDC Max
  • Output contacts: NO\COM
  • Tested for: 500000 cycles
  • Working temperature: ~ (-10 to +55)°C or (14 to 131)ºF
  • Working humidity: 0-95%
  • Weight: 0.3kg


TW-RA3 - 3m cable

Cable for connection and power of elements of the Triple W Kit's

  • Cable for electrical connections.
  • Length: 3m.

TW-0180 - Wiring set for KIT's

Cables for connection and power of elements of the Triple W Kit's

  • Set composed of:
  • 3 X Cables for electrical connections with 3 meters in length each
  • 3 X electrical connections
  • 9 X smugglers

MIFARE tag in key chain format

  • Frequency: 13.56MHz, IC;
  • For exclusive use with our access controllers;
  • Operation by proximity (5 cm)
  • No battery required;
  • Size: 50x30x2 mm;
  • The same key can open different drivers;

Pre-wiring includes:

Connectors for easy installation;

Electrical cables connectors with 3m;

Electrical assembly of components.
